        HOPKINS STANDARD  CATTLE GRID
  • Installed within hours not days.
  • No concrete or blockwork pit required and no bolting sections together
  • Place the one piece unit onto a hardcore base,backfill and then drive over!
  • Exceedingly cost effective.
  • Load tested to 50 tons capacity / 12.5 ton axle
  • Available in 9', 10', 11', 12', 13', 14', 15' up to 24' wide x 8'- 6" across.
  • Also available are 10', 11', 12' wide x 15'- 3" across grids for deer.
  • Weight of 11' cattle grid approximately 1 ton.
  • Depth of grid 14"
  • Very little maintenance.
  • Painted or galvanised finish.
  • Installed by most of Scotland's leading forestry companies
  • Installed by the Ministry of Defence and Councils.
  • Ideal for farm, estate or forestry roads.
  • There is no other grid so easy and economical to install.
  • Protected by Patent No. 2155526.

   Standard Cattle Grid
Click here to enlarge
Click here to enlarge

Standard 50 ton Cattle Grid before installation

Click here to enlarge

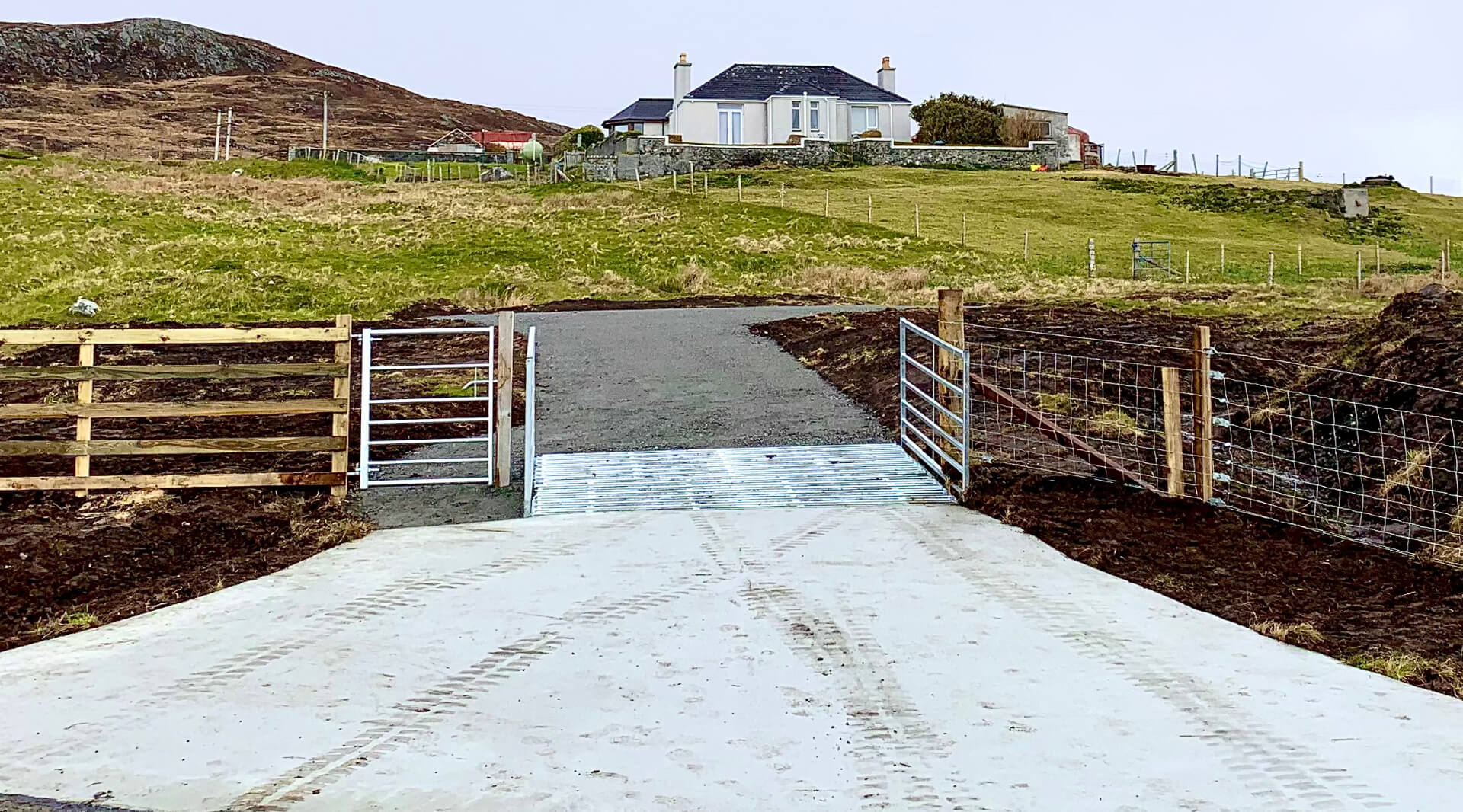

Cattle Grid can be installed on a slope

Click here to enlarge
